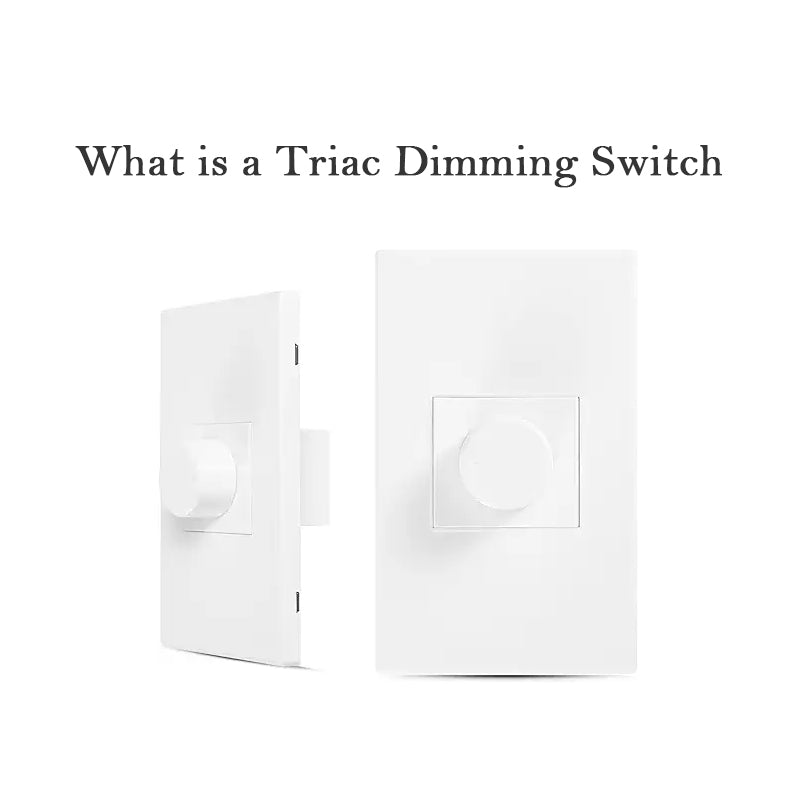

What is a Triac Dimming Switch?

November 25, 2024

Definition and Basic Principles of Triac Dimming Switches

What is a Triac Dimming?
A Triac Dimming, also known as a silicon-controlled rectifier (SCR), is a type of semiconductor device used for switching and controlling high voltage and current in electrical circuits. It consists of three main terminals:

Anode (positive terminal)
Cathode (negative terminal)
Gate (control terminal)
Triac Dimming are primarily used to control power in AC and DC systems by acting as a controllable switch that can conduct or block electrical flow.

How Does a Triac Dimming Switch Work?
Triac Dimming switches operate by triggering conduction through the application of a small signal to the gate terminal. Here's how the process works:

Forward Blocking Mode: When a forward voltage is applied, the Triac Dimming remains in a non-conductive state unless a gate signal is provided.
Triggering and Conduction: Applying a positive gate signal allows current to flow between the anode and cathode, turning the switch "on."
Turn-Off: In most cases, the thyristor will turn off when the current drops below a certain threshold, such as during the zero-crossing point in an AC waveform.
This ability to control high power with a small signal makes thyristors invaluable in many applications.

Types and Classifications of Triac Dimming Switches

Unidirectional and Bidirectional Triac Dimming Switches
Triac Dimming switches can be classified into two main categories based on the direction of current flow:

Unidirectional Thyristors: Allow current to flow in one direction, commonly used in DC circuits or rectifier systems.
Bidirectional Thyristors (TRIACs): Allow current to flow in both directions, making them suitable for AC power control.

Classification Based on Control Methods
Thyristors are also categorized by their triggering and control mechanisms:

• Phase-Controlled Thyristors: Used for precise control of power by varying the firing angle.
• Zero-Crossing Thyristors: Triggered at the zero-crossing point of an AC cycle to minimize electrical noise.

Common Models and Parameter Analysis
Common thyristor models include SCRs, TRIACs, and GTOs (Gate Turn-Off Thyristors). Important parameters to consider when choosing a model include:

• Voltage Rating: Maximum voltage the device can handle.
• Current Rating: Maximum current it can safely conduct.
• Gate Sensitivity: The level of current or voltage required to trigger conduction.
